| 產 品 規 格 書 | |||||
|

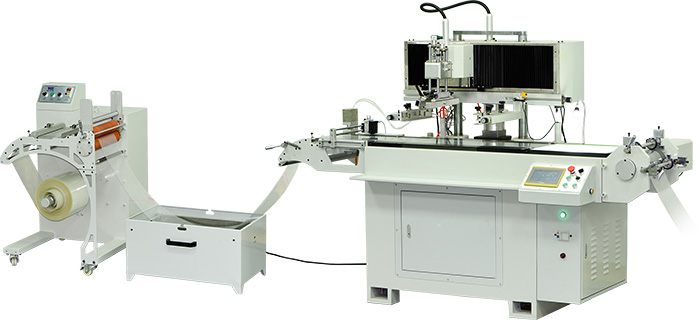

產品名稱：WL-350D高速單色絲印機 Product Name:Pneumatic Type Single-Color Screen Printing Machine WL-350D |
|||||
| 一、標準配置(Standare Accessoriesw) | |||||
| 序號No. | 名稱(Name) |
技術規格 (Specification) |
單位 Unit |
備 注 Remark |
|

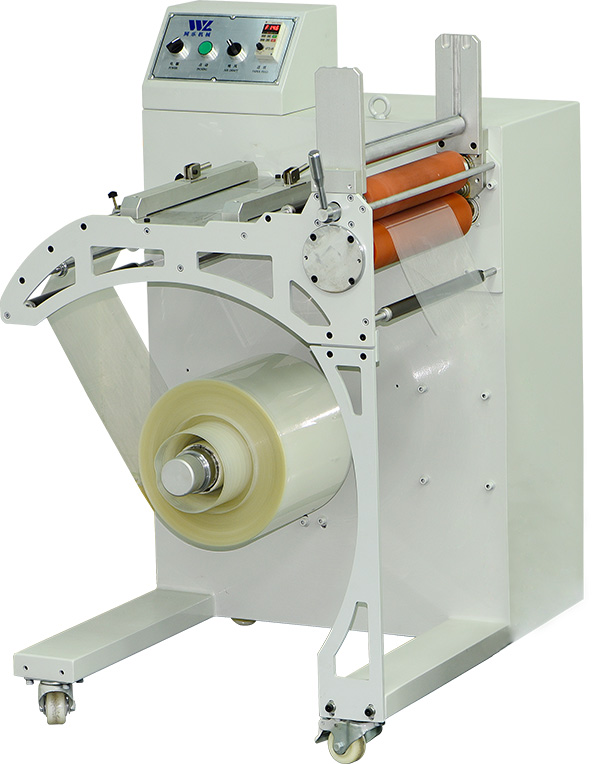

| 1.1 | 送料機（Unwinder） | 1 | Set | ||

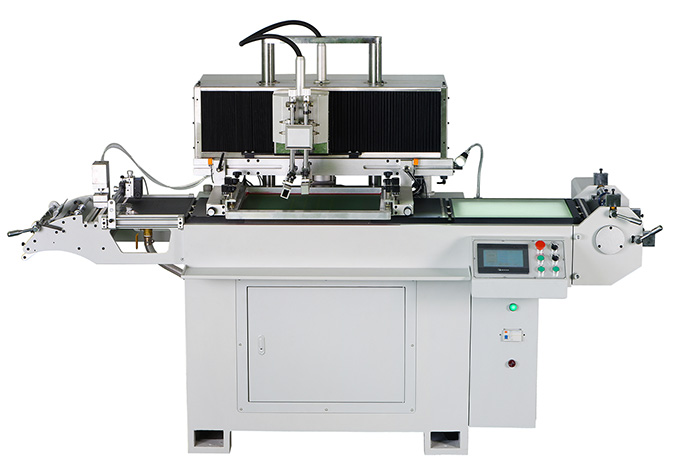

| 1.2 | 印刷主機(Mian Machine) | 1 | Set | ||

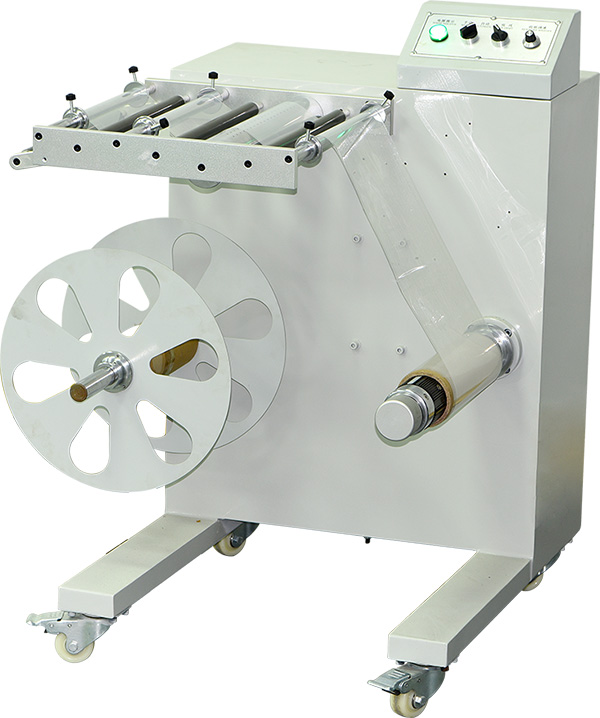

| 1.3 | 雙復卷機（Twin Rewinder) | 1 | Set | ||
| 1.4 | 烤箱（Drying Box) | 1 | Set | 30M | |
| 1.5 | 網框(Set Screen Frame) | 4 | Set | ||
| 1.6 | 刮墨刀(Scraper) | 3 | Set | ||
| 1.7 | 回墨刀(Ink-Rrturn Blade) | 3 | Set | ||
| 1.8 | 工具箱(Tool Box) | 1 | Set | ||
| 1.9 | 說明書(Operation Manual) | 1 | Set | ||
| 二、規格參數(Specifications) | |||||
| 序號No. | 名稱(Name) |
技術規格 (Specification) |
單位 Unit |
備注 Remark |
|
| 2.1 | 網框尺寸(Screen frame size) | 550*700 | mm | 最大尺寸 | |
| 2.2 | 最大印刷面積(Max.print area) | 330*450 | mm | ||
| 2.3 | 最大紙寬(Max.paper Width) | 350 | mm | ||
| 2.4 | 最大拉紙(Max.paper Forward) | 450 | mm | ||
| 2.5 | 印刷速度(Printing Speed) | 0-9000 | rpm | ||
| 2.6 | 主機尺寸（L×W×H）(Machine Size) | L.2500×w.1100×h.1700 | mm | ||
| 2.7 | 烤箱尺寸（L×W×H）(Drying Box Size) | 1865*940*2000 | mm | ||
| 2.8 | 主機重量(Weight of the host) | 凈重(Net Weight) | 1200 | kg | |
| 裝箱(Gross Weight) | 1700 | kg | |||
| 2.9 | 烤箱重量(Drying Box weight) | 凈重(Net Weight) | 600 | kg | |
| 裝箱(Gross Weight) | 950 | kg | |||
| 2.10 | 電源馬達(Power supply motor) | 主機電源(Host power supply) | 220 | V | |
| 烤箱電源(Drying Box power supply) | 380 | V | |||
| 烤箱功率(Drying Box power) | 10 | kw | |||
